Ultra thin cutting wheel
Product Description
Ultra thin cutting disc
Used for expensive metal, knives, strip, wire, electric Lam, high carbon steel wire, alloy,
stainless steel, die steel, etc. Which need require more stringent cut off, grooving, wash ditch.
The main dimensions and specifications
|
SIZE：MM |
HIGHEST WORK SPEED |
|||
|
DIA |
THICKNESS |
INNER |
RPM |
LINE SPEED M/S |
|
76 |
0.15-0.5 |
12.7-31.75 |
12600 |
50 |
|
90 |
0.3-0.5 |
12.7-31.75 |
10600 |
50 |
|
150 |
0.3-1.0 |
12.7-31.75 |
6400 |
50 |
|
180 |
0.4-1.0 |
12.7-31.75 |
5300 |
50 |
|
200 |
0.7-1.2 |
12.7-31.75 |
4800 |
50 |
|
230 |
0.8-1.2 |
12.7-31.75 |
4150 |
50 |
|
250 |
0.8-1.5 |
12.7-31.75 |
3800 |
50 |
Product Features:
Different from the traditional wheels, with very high precision, strength and rigidity.
High precision cutting, not broken, no oblique cutting.
Used for fixed cutter.
Save the steel cause the cutting edge is very narrow .
Has a very high sharpness and durability.

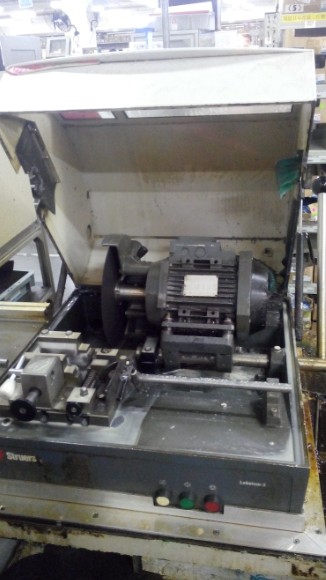

Cutting wheel installed on Struer Labotom-3 cutting machine

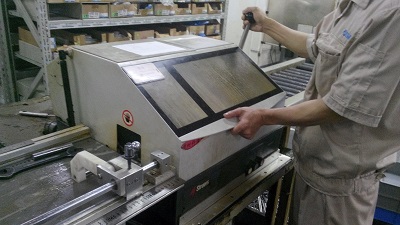

Struer Labotom-3 cutting machine

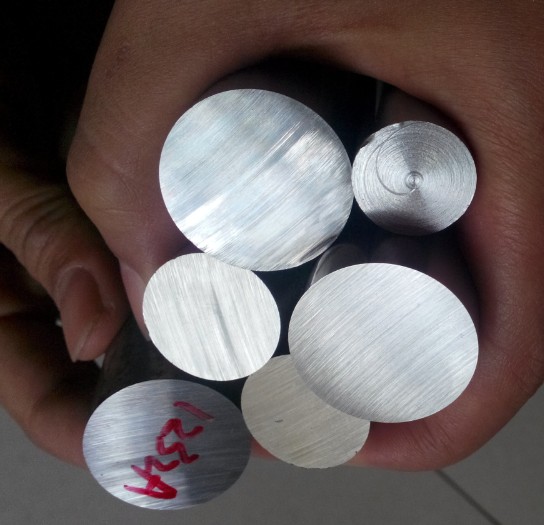

Cutting performance - No burn, No burr, perfect finishing
